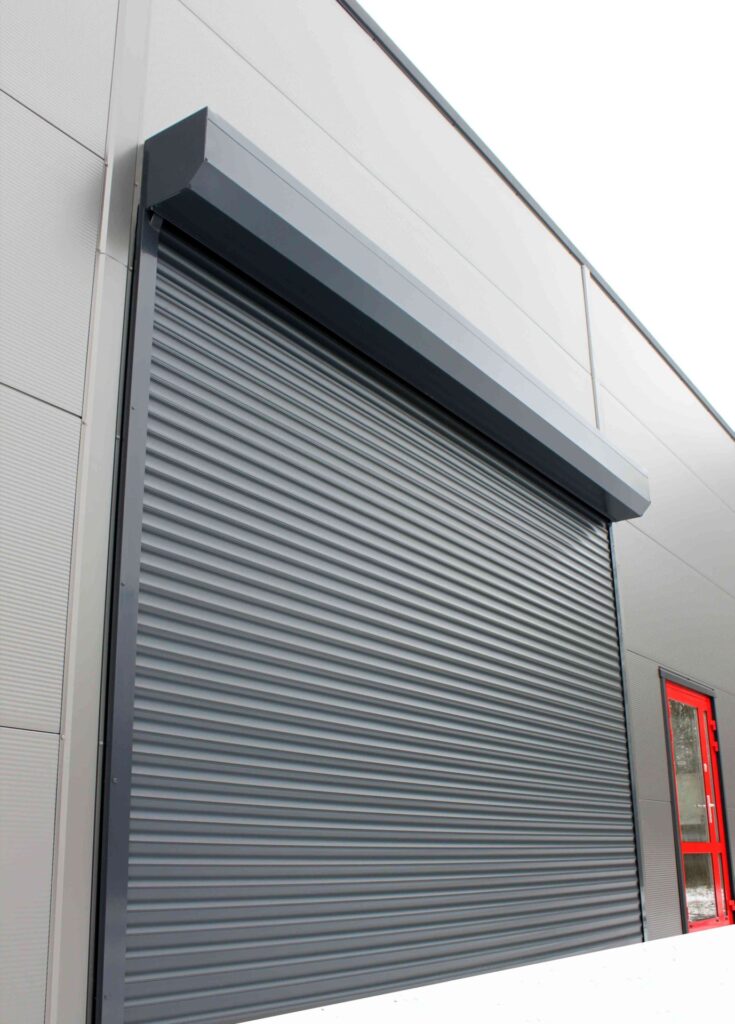

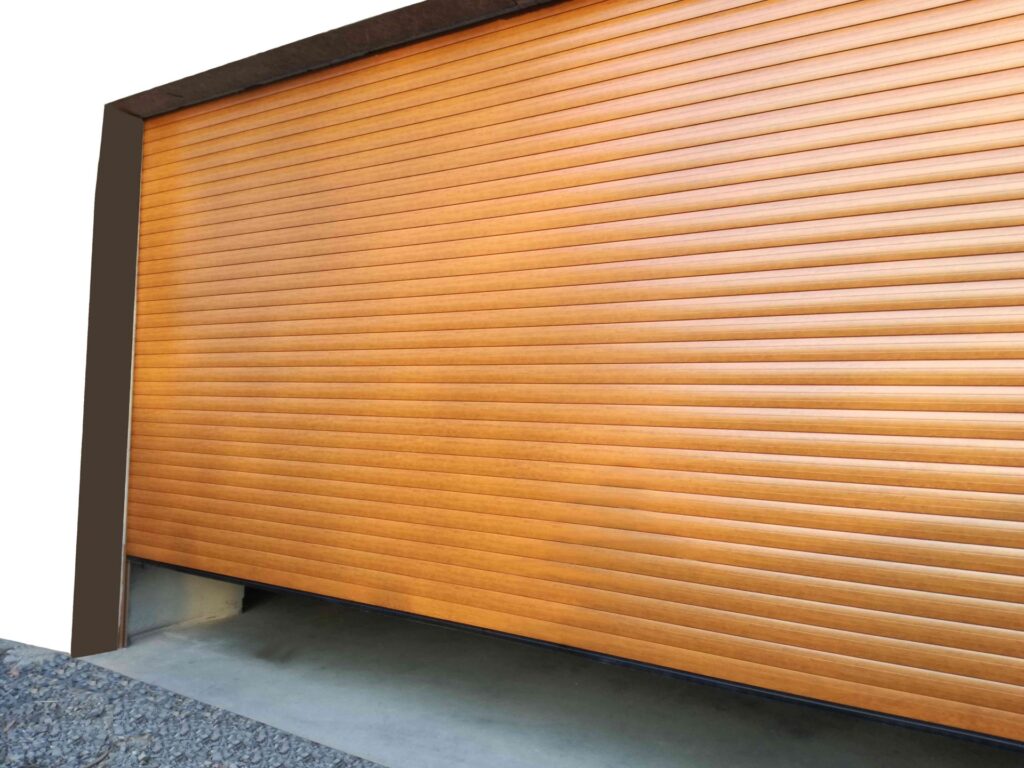

Gate Garage Roller

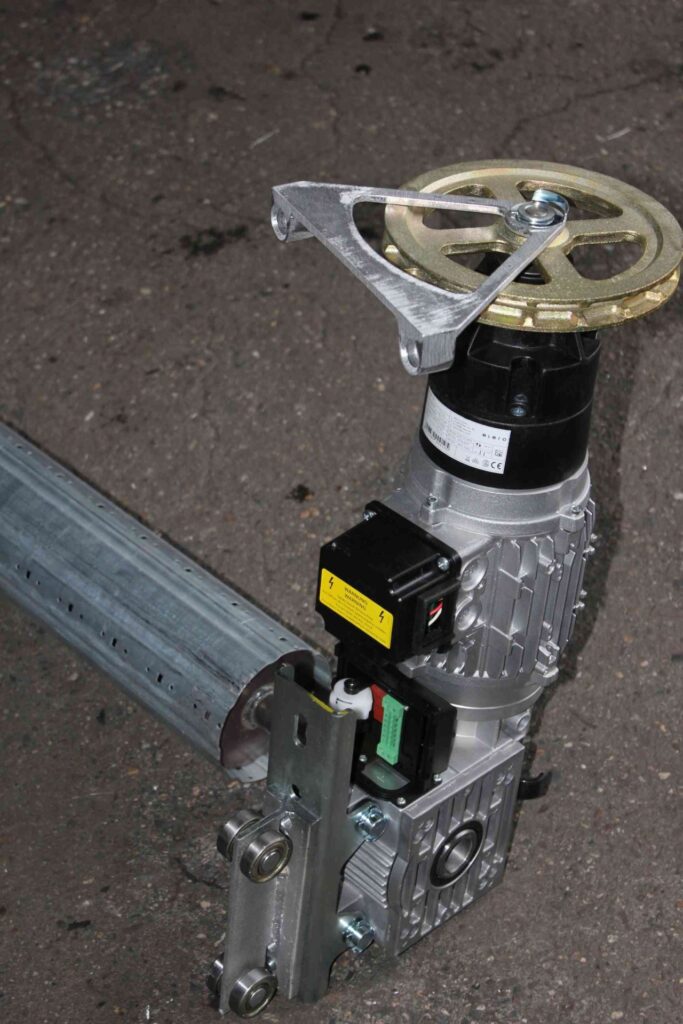

Roller shutters work by the armoured curtain rolling up onto a shaft using a motor, operated by a wall switch, remote control or Wi-Fi controller.
Versatility
The only gate suitable for installation

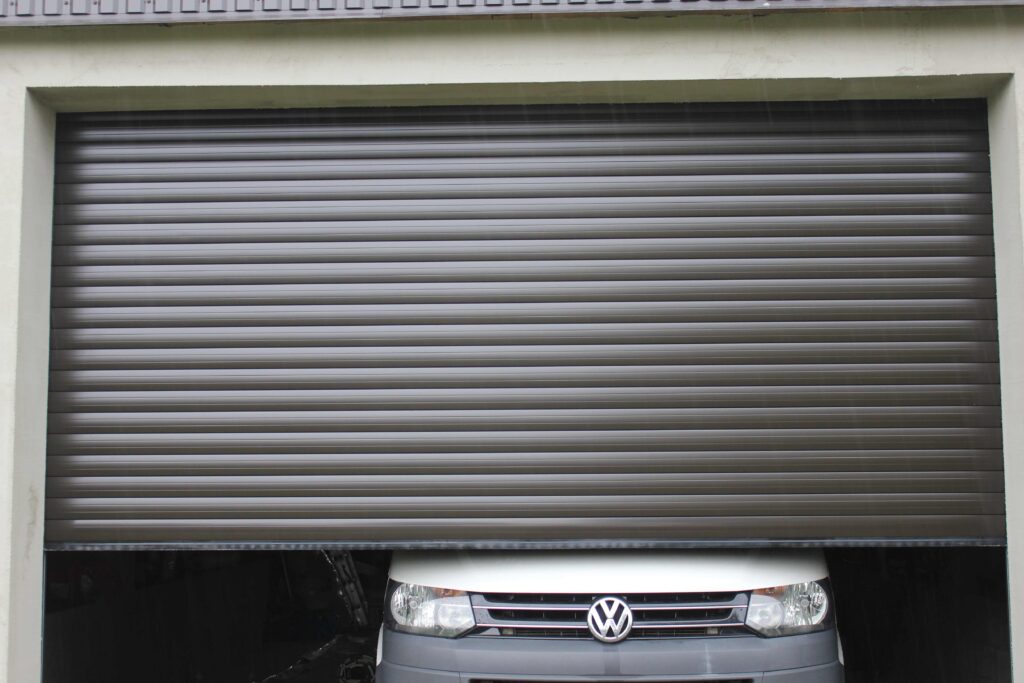

from the outside, from the inside, and into the recess
Guarantee
reliability
Uncomplicated construction, so-called minimalism
So, fewer parts means fewer breakdowns.
Comfortable in service

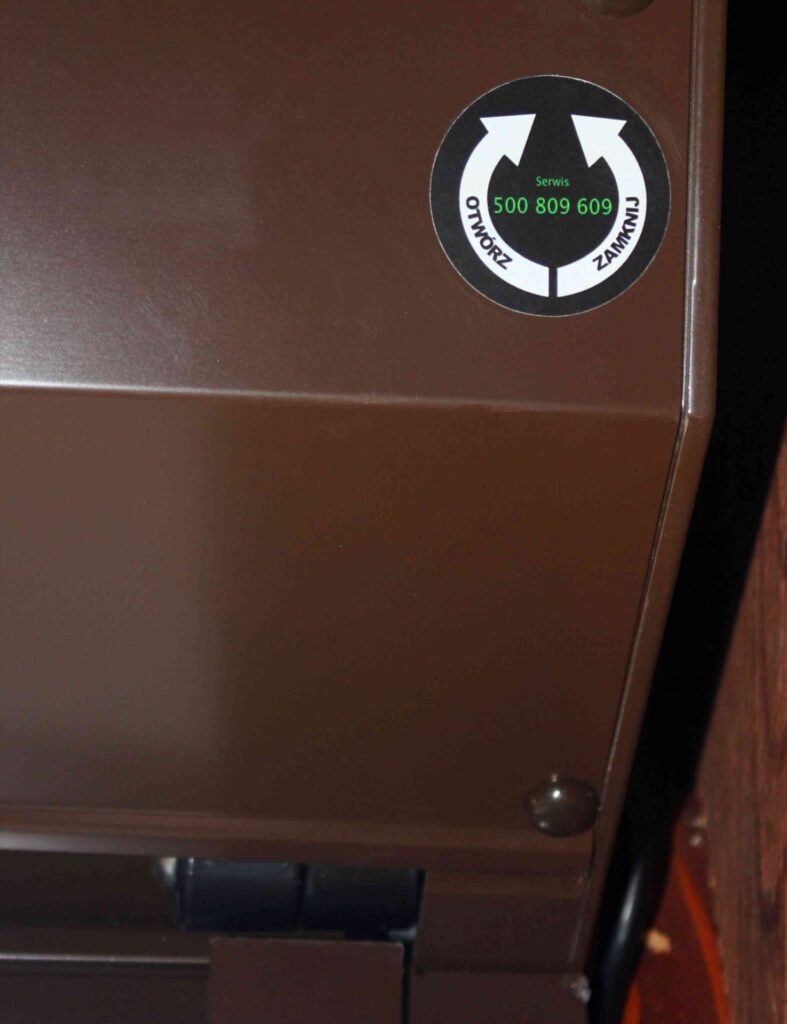

The only gate that has a motor and emergency opening as standard
Durable
robust and resistant to difficult conditions and atmospheric factors
Insulated – polyurethane foam filled profile

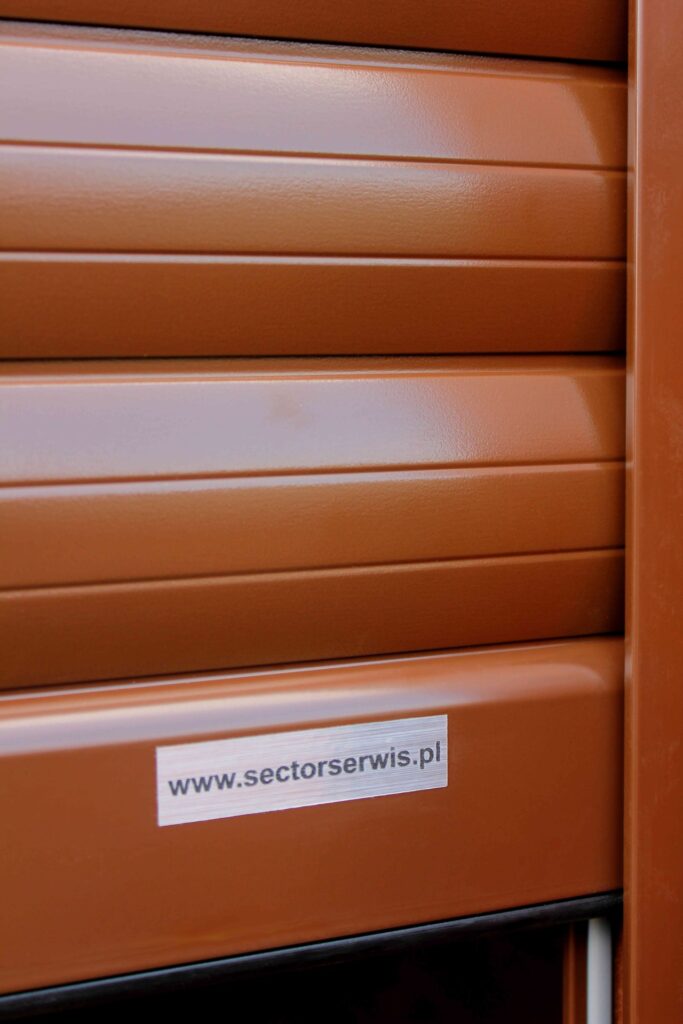

Vibrant – made of aluminium and powder-coated
Maintenance-free – requires infrequent lubrication
Insulated – polyurethane foam filled profile
Easy to repair Maintenance and servicing, in the event of, for example, a breakdown, do not require several days of repair.
Good value for money

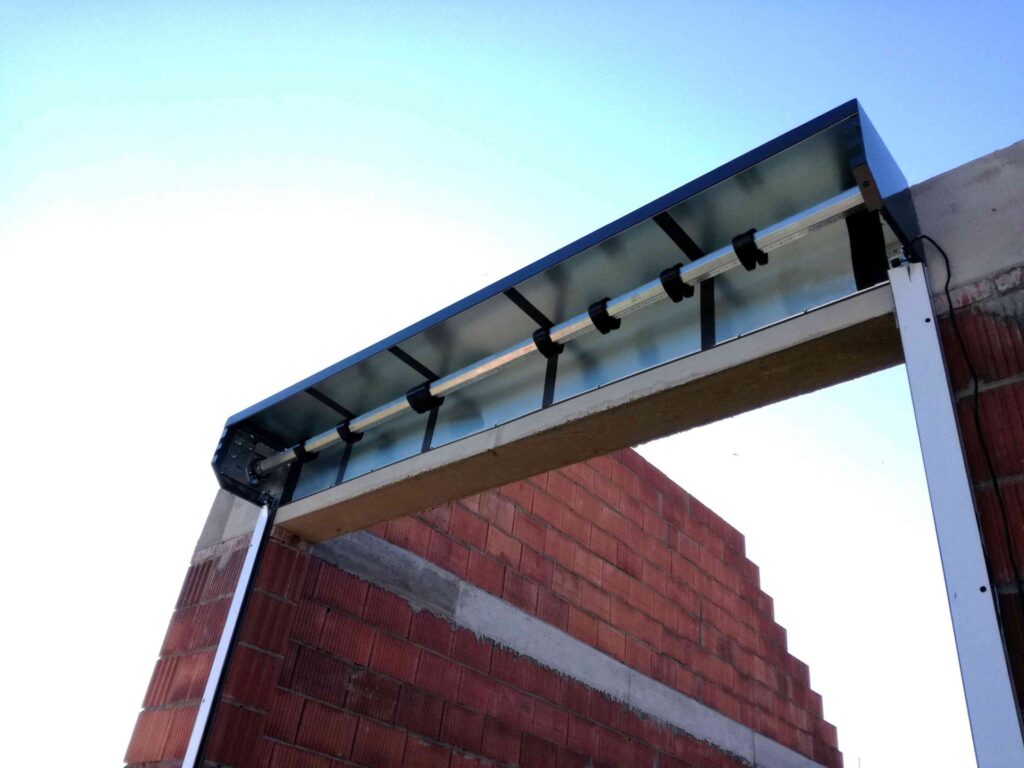

Extending the garage
mounted from the outside,
lengthens the garage by the thickness of a brick
In use
easy access to parts
and low failure rate over the years
We offer you a gate
Further equipment

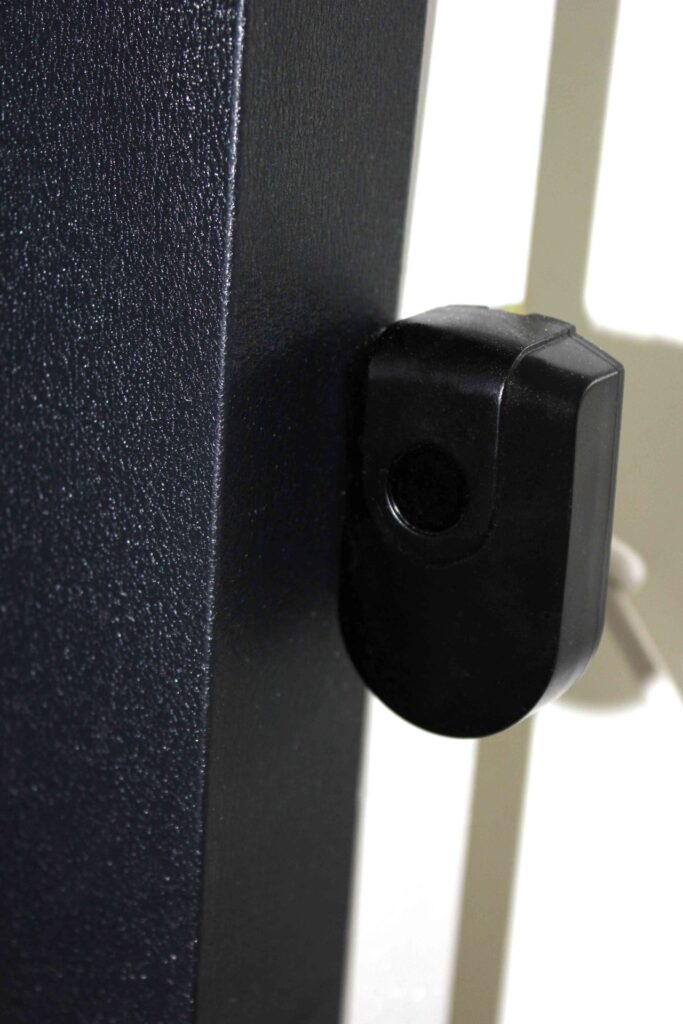

photoelectric cells
Inertia brake
Radio receiver, remote control, keyring
4-channel remote controls
CV joint
Surface-mounted key switch, astable
Under-plaster rotary switch
key switch

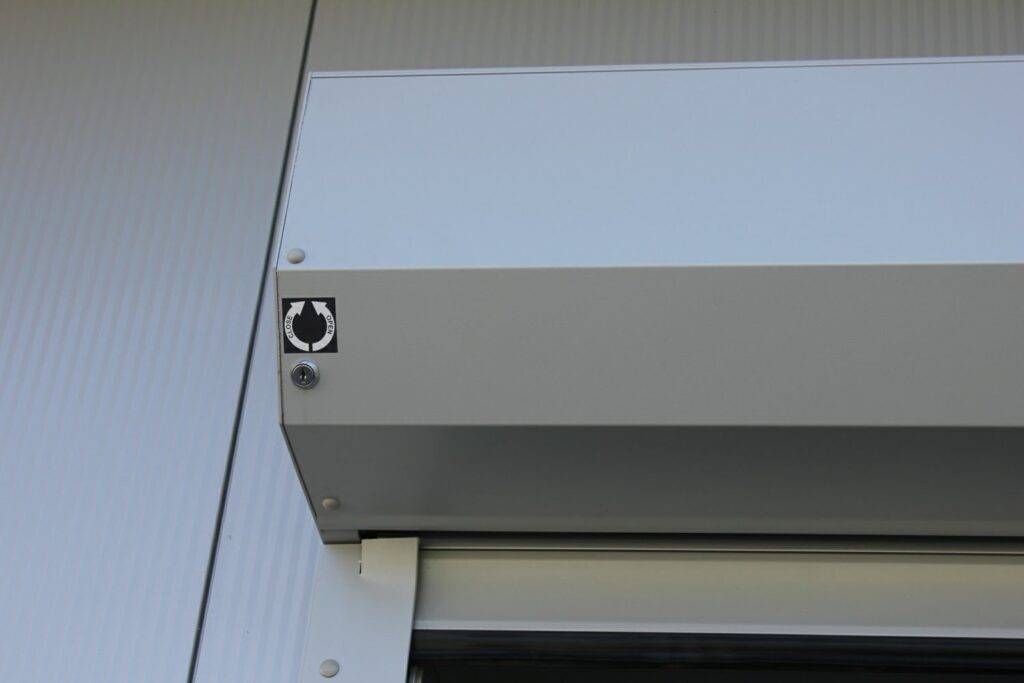

Crank locking mechanism
Warning light
Ventilation profile

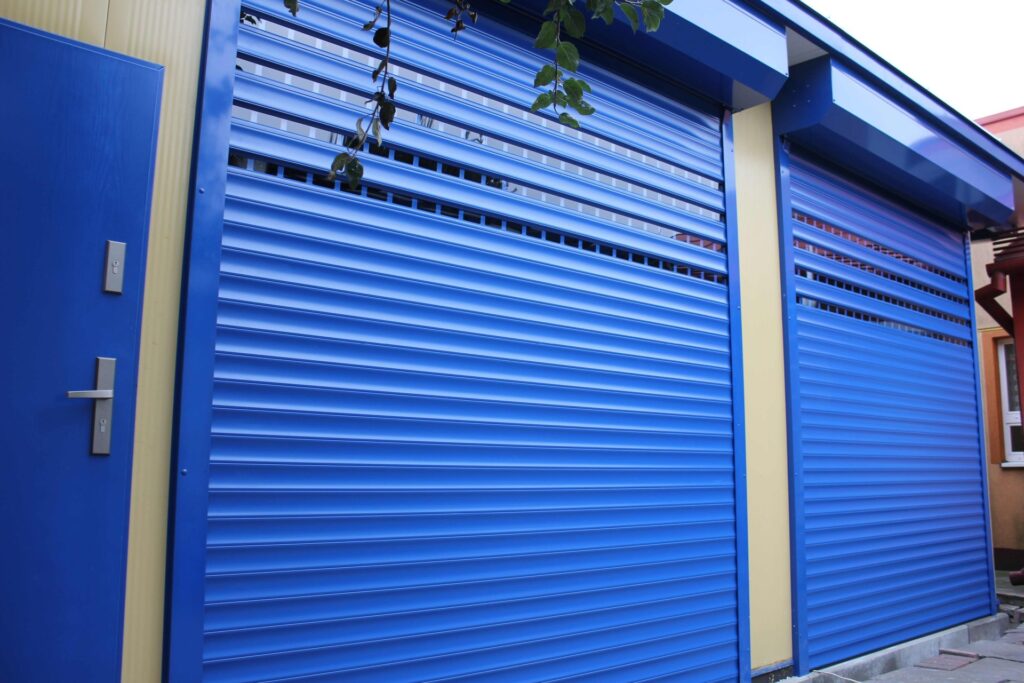

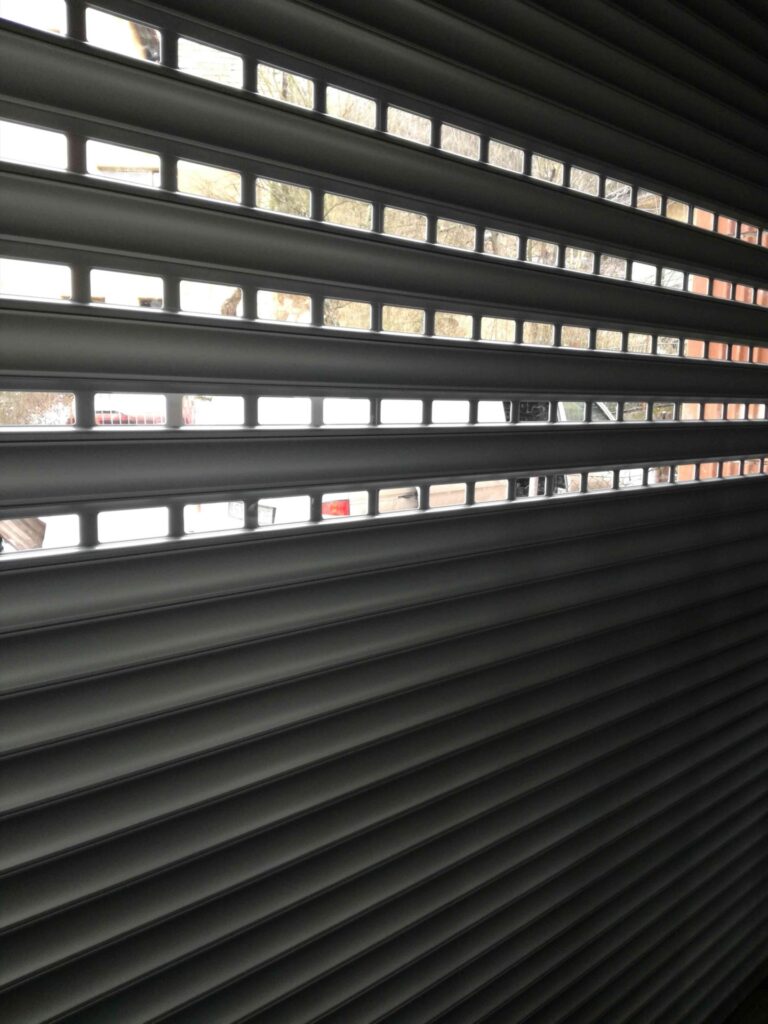

Glazed profile
Hanger locks
model Bram
TYP 77

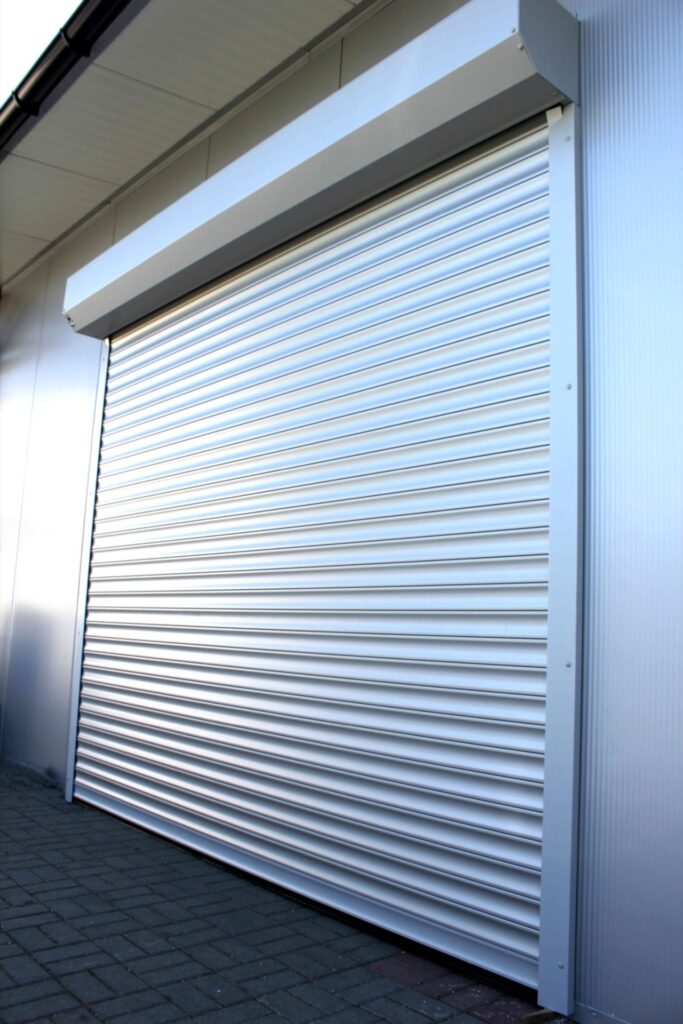

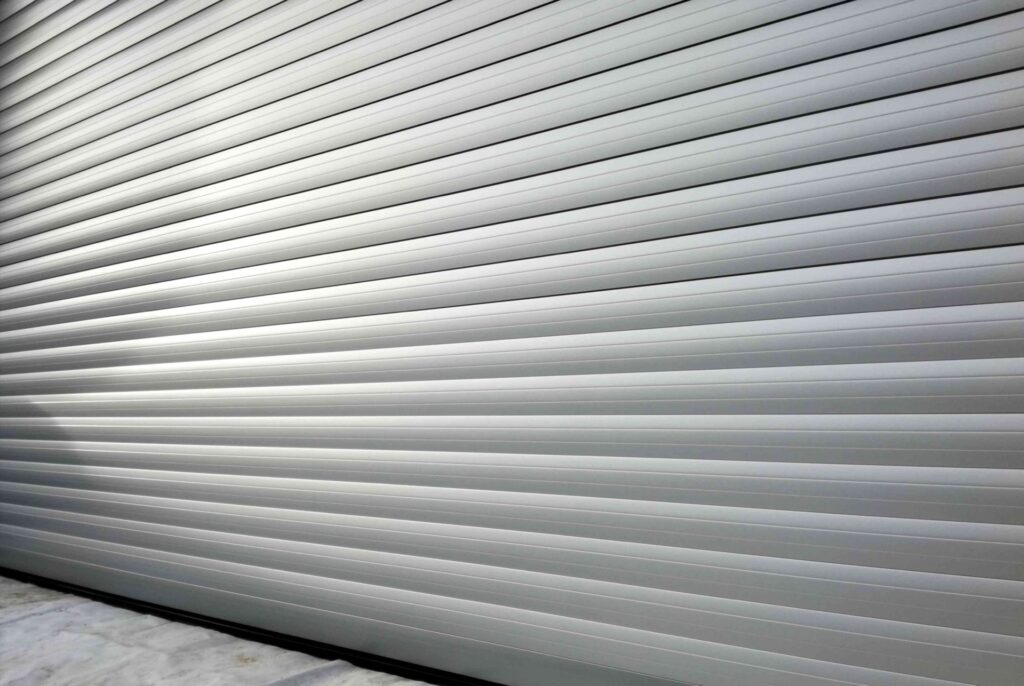

Roller garage door
[ Standard ]
The most popular roller shutter door among roller shutter doors
Profile
Technical specifications
Aluminium profile Insulated
Profile height – 77 mm
Profile thickness 18 mm
The weight of the armour – 5.5 kg/m²
Max. area – 15.75 m2
Max. width 4500 mm
Aluminium box – drawing
Aluminium/steel plates – 300 / 360
Aluminium guides – 90 mm
Max. height
2100 mm in a box of 250,
3000 mm in the box 300,
3.5 metres in the box 360
Permeability coefficient
warm 2.5 W/m²K

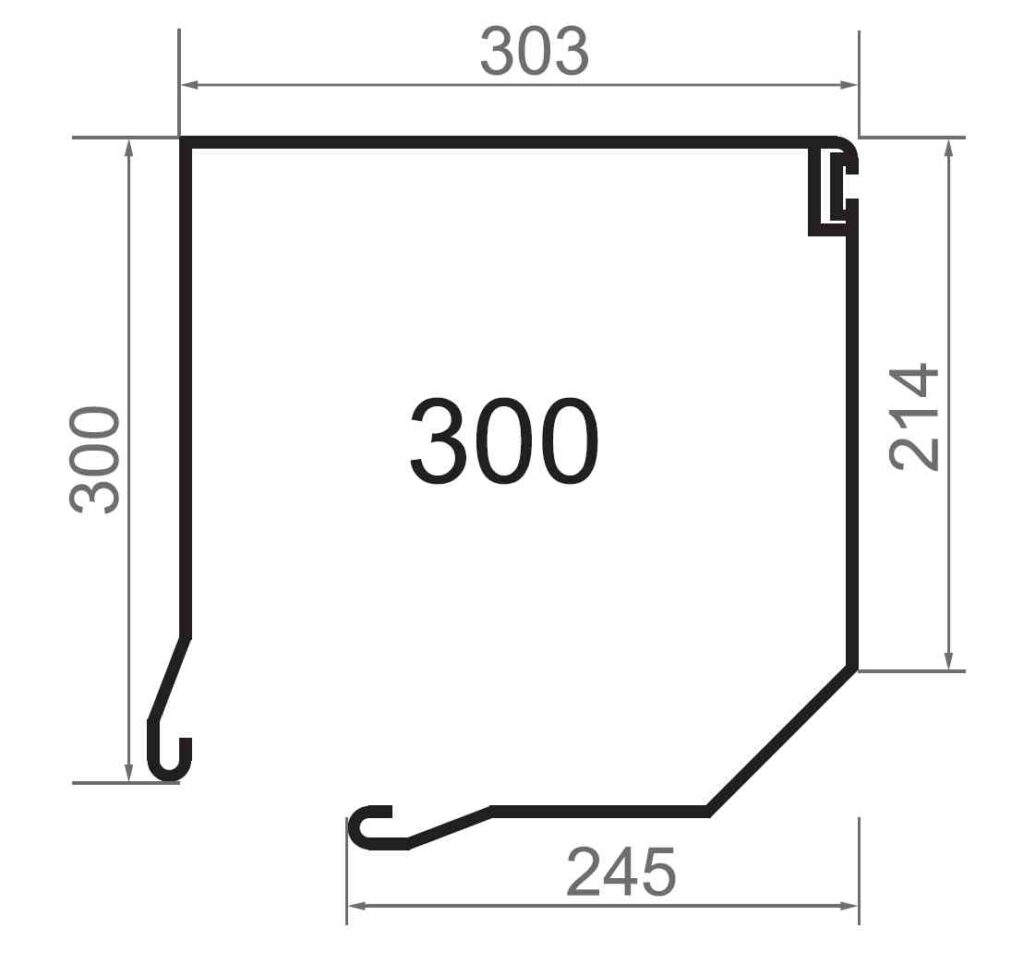

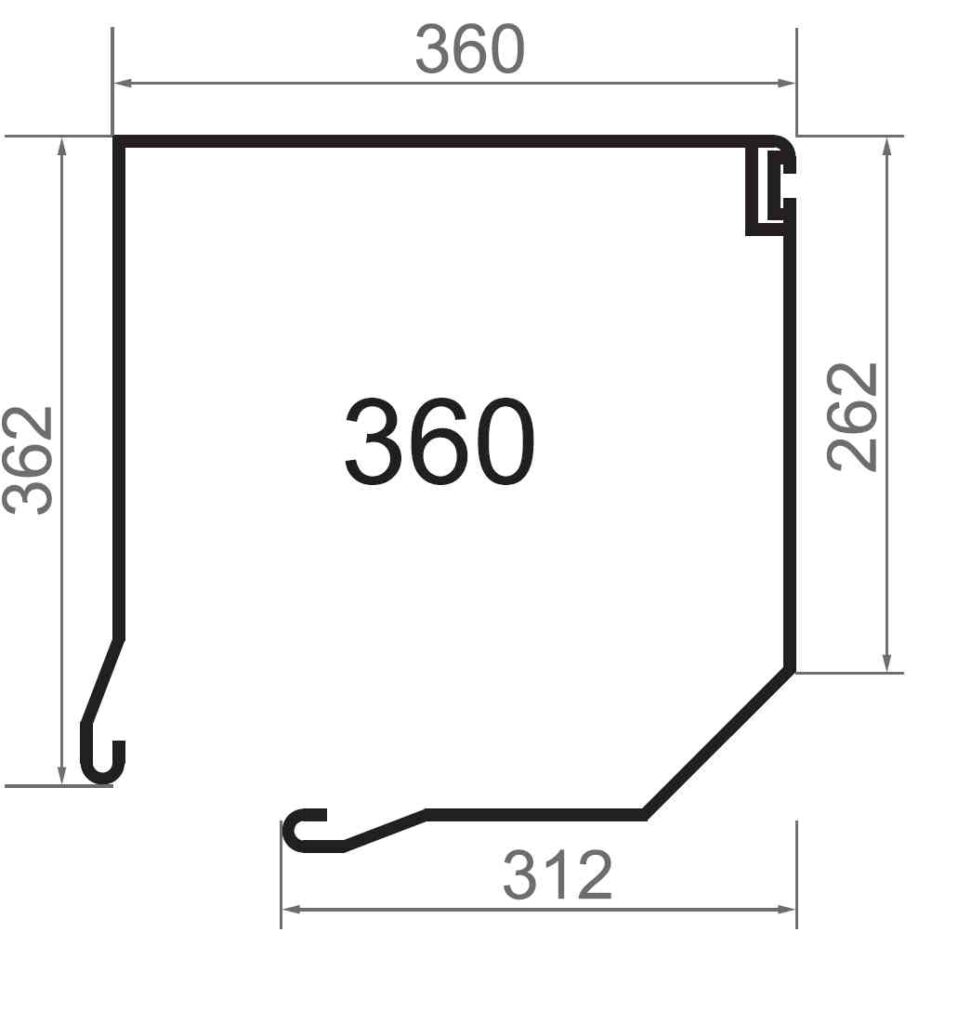

box sizes
Profile colours
TYP 55
Roller garage door
Maxi
Alternative lintel for small openings at a height of 250mm

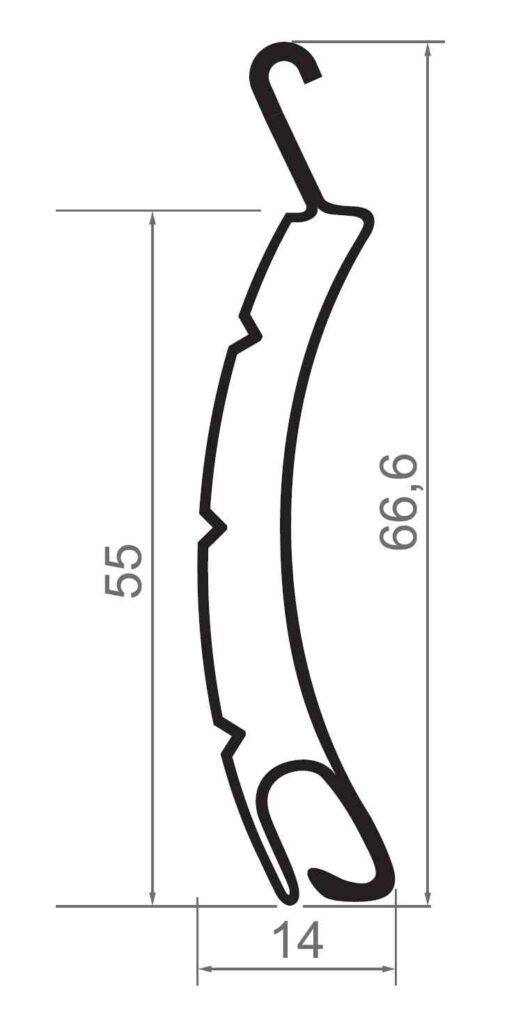

Profile
Technical specifications:
Aluminium profile Insulated
Profile height – 55 mm
Profile thickness 14 mm
The weight of the armour – 3.5 kg/m²
Max. area – 12 m²
Max. width 3600 mm
Aluminium box – drawing
Aluminium frame
Aluminium guides – 75 mm
Max. height
3000 mm in a box of 250,
3800 mm in the box 300,
Notes - No PVC strip with glazing
box sizes
Profile colours

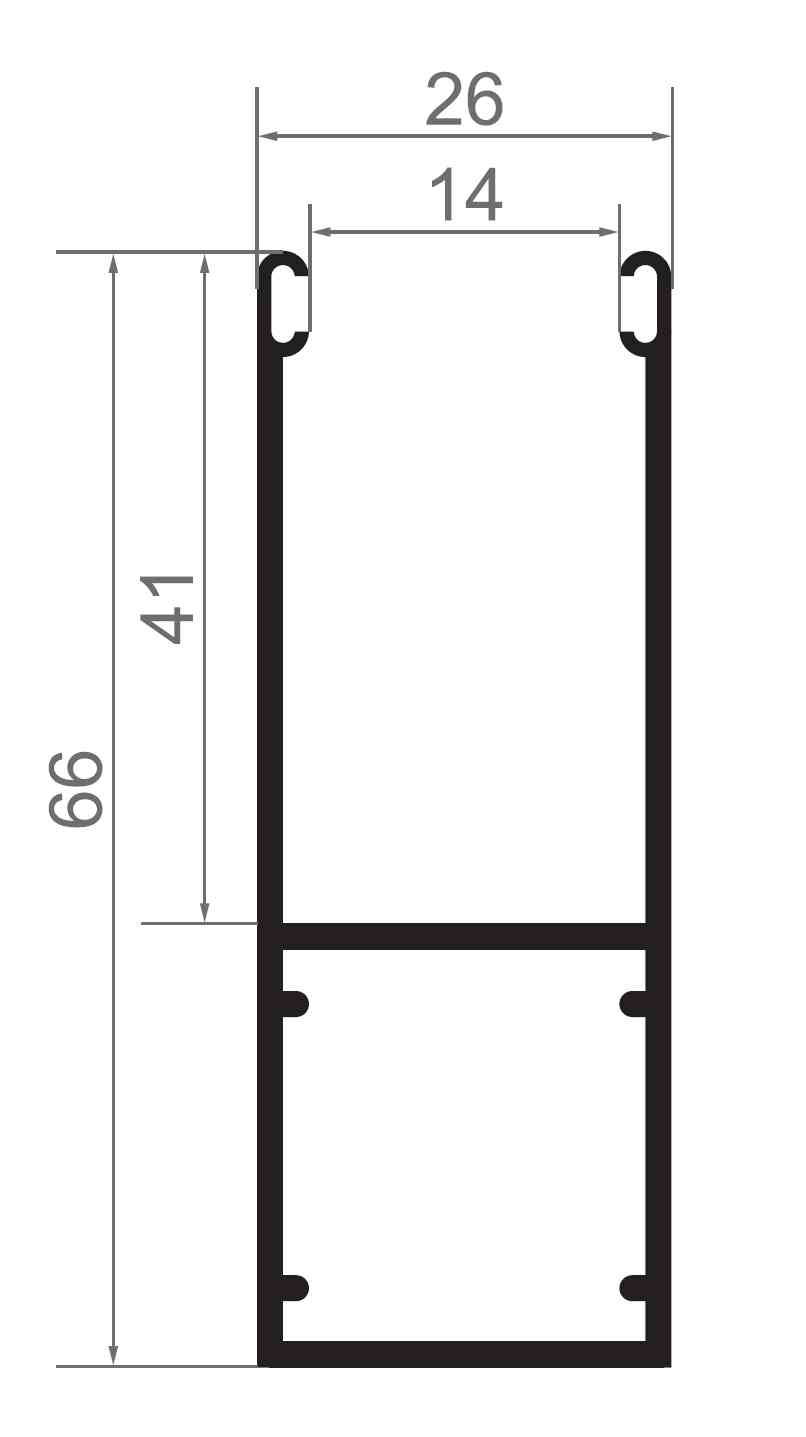

guide
Insulated profile
TYP 52
Roller garage door
[Mini]
Alternative lintel for small openings at a height of 250mm
Profile
Technical specifications:
Aluminium profile Insulated
Profile height – 55 mm
Profile thickness 14 mm
The weight of the armour – 3.5 kg/m²
Max. area – 12 m²
Max. width 3600 mm
Aluminium box – drawing
Aluminium frame
Aluminium guides – 75 mm
Max. height
3000 mm in a box of 250,
3800 mm in the box 300,
Notes - No PVC strip with glazing
box sizes
Profile colours
guide
Insulated profile
TYP 56

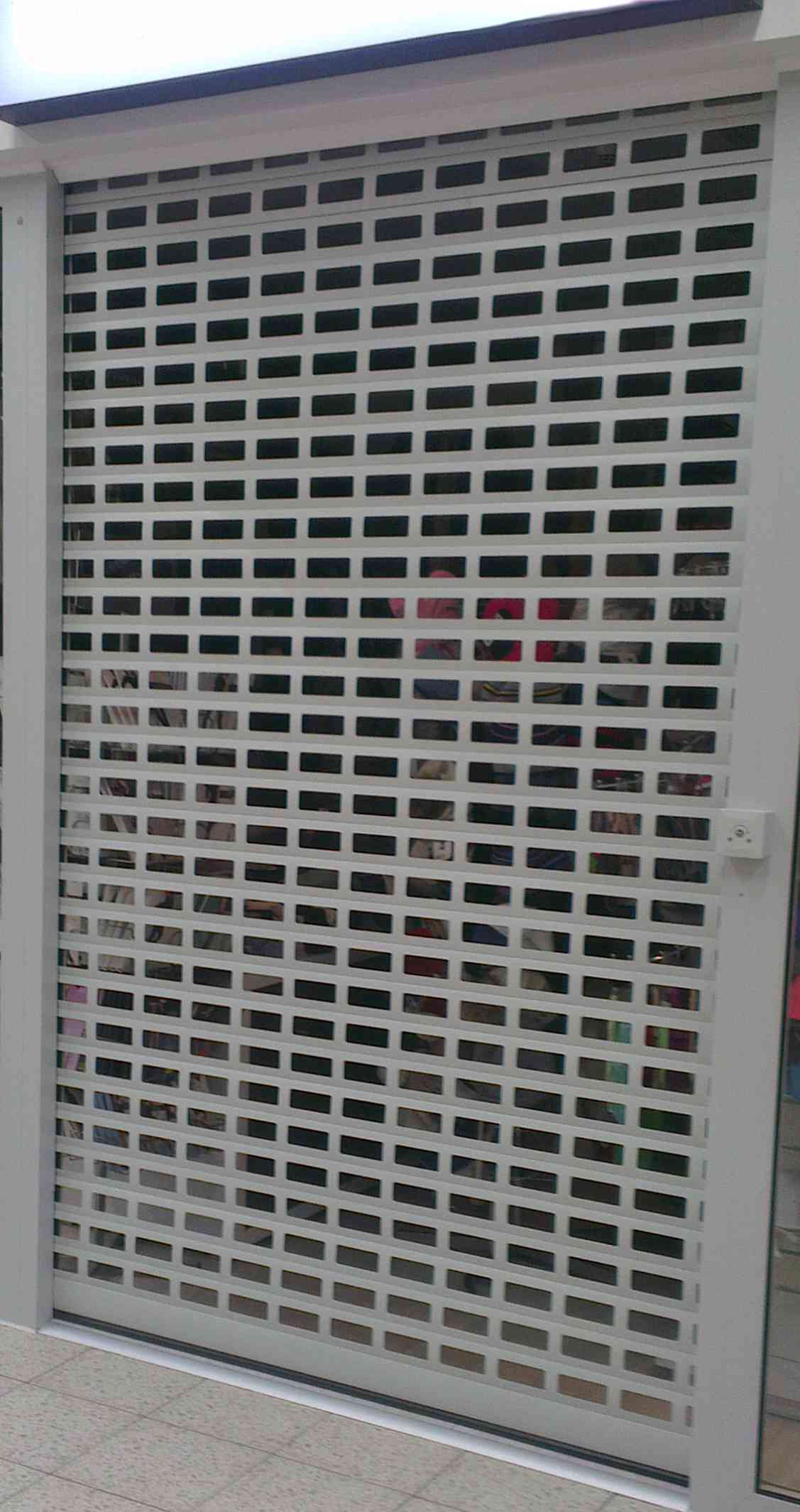

Rolling tray
[Mini]
Small skirt

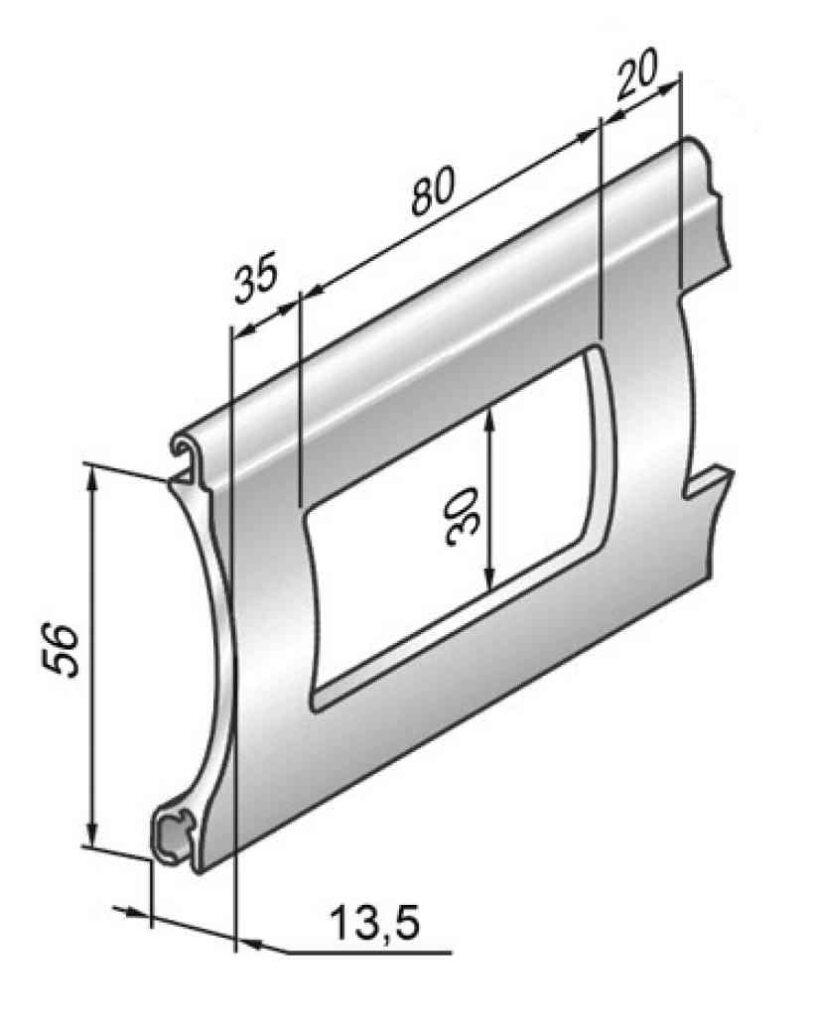

Profile
Technical specifications:
Aluminium profile
Profile height – 56 mm
Profile thickness 13.5 mm
Grid load 7 kg / m²
Max. area – 15 square metres
Max. width 3.5 metres
Aluminium box – drawing
Aluminium frame
Aluminium guides – 66 mm
Max. height

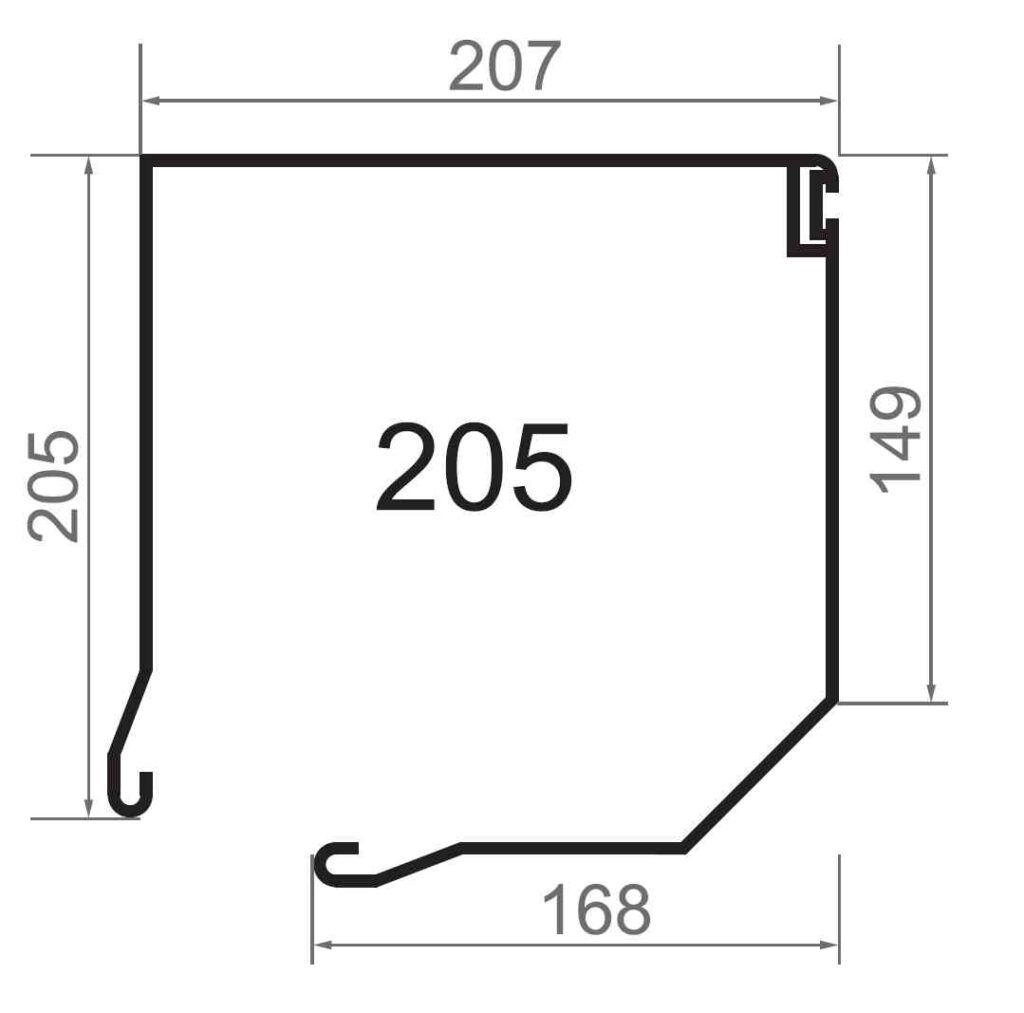

2600 mm in box 205,
3800 mm in a box of 250,
6000 mm on the console
Notes - No PVC strip with glazing
box sizes
Profile colours
