Roulette external

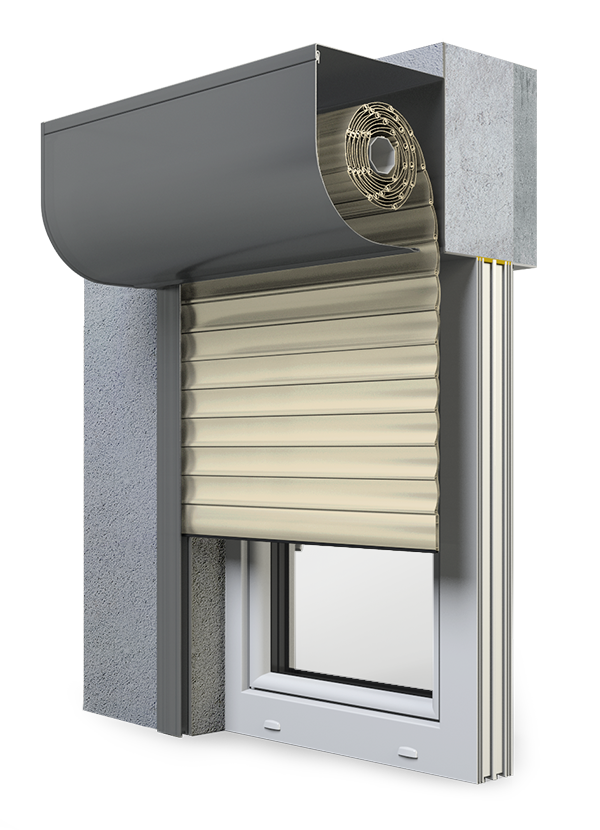

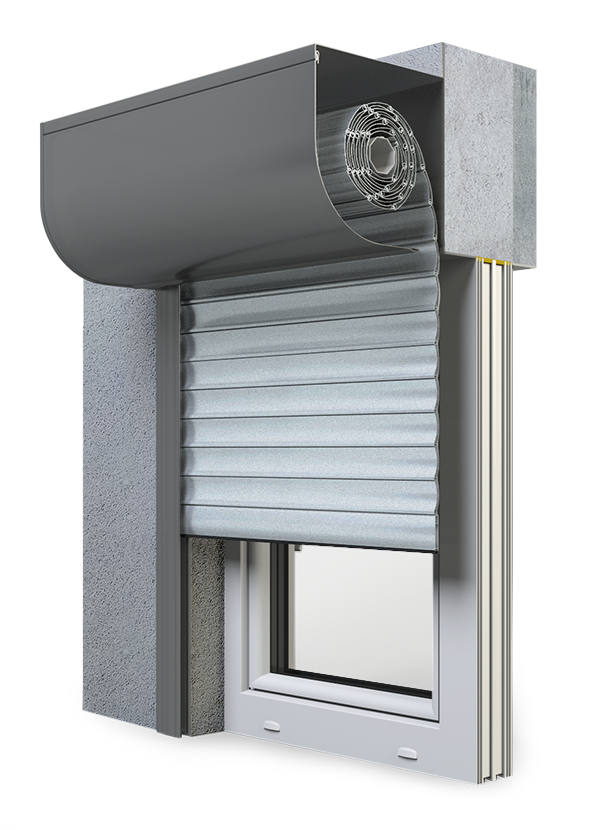

rendered adaptive SKP – semi-oval

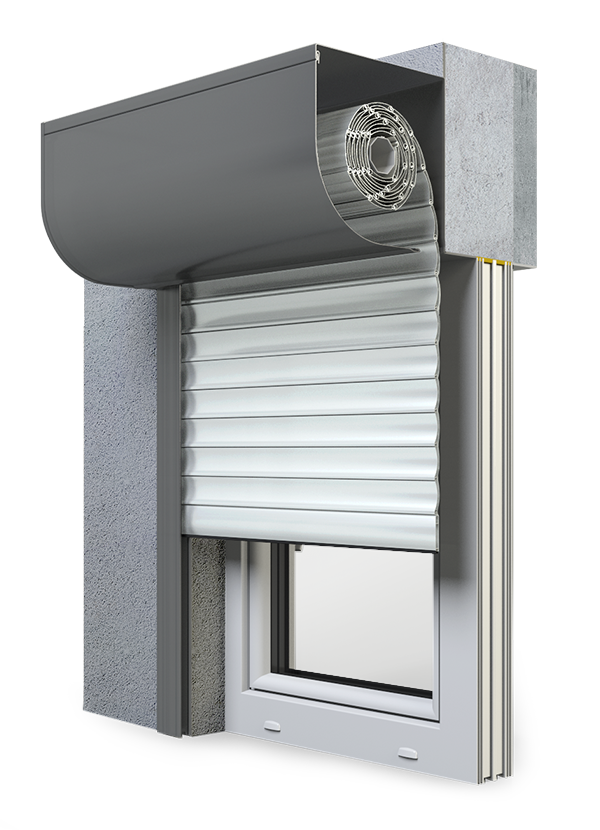

  • White

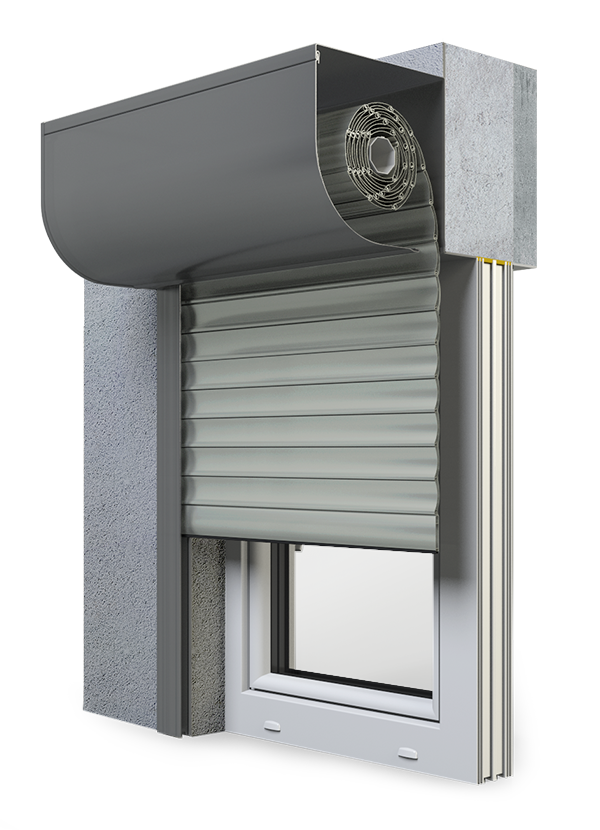

  • Grey

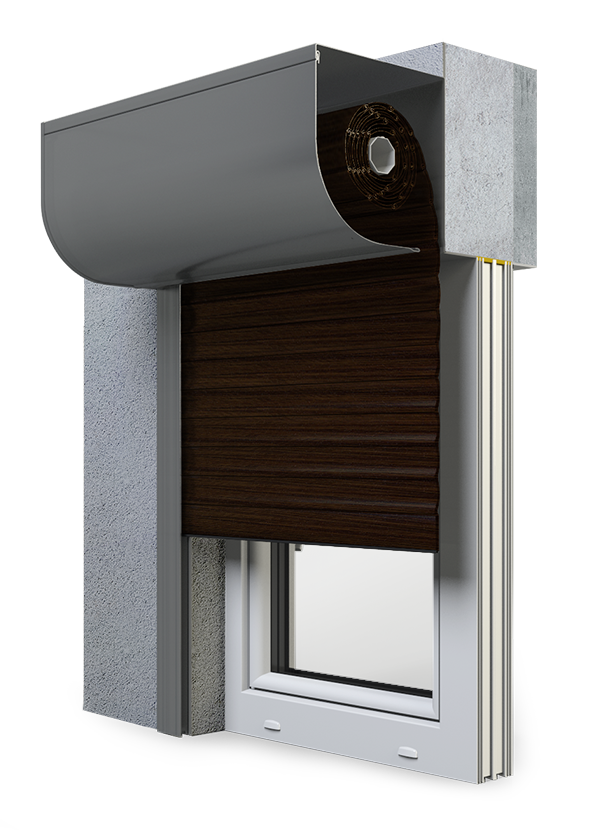

  • Wenge
  • Grey

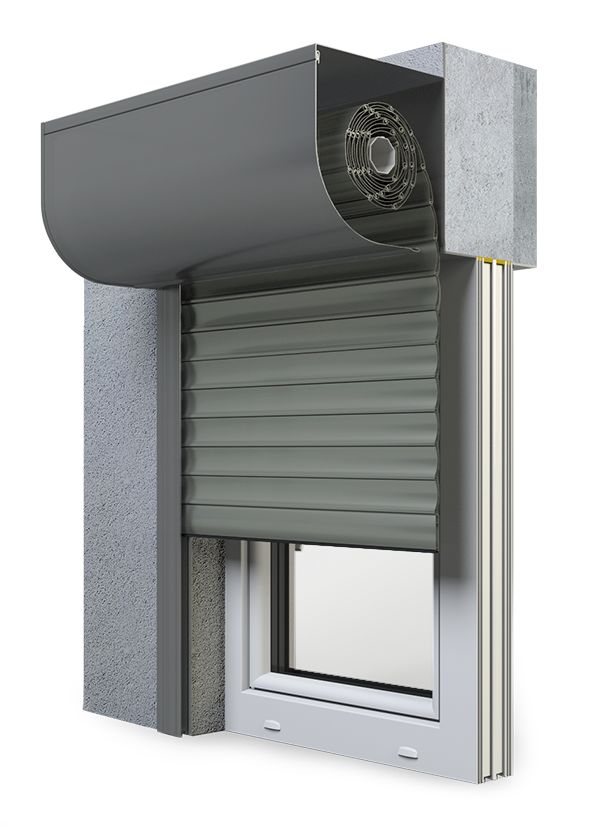

  • Basalt grey
  • Winchester
  • Mahogany
  • nut
  • Golden oak
  • Light grey

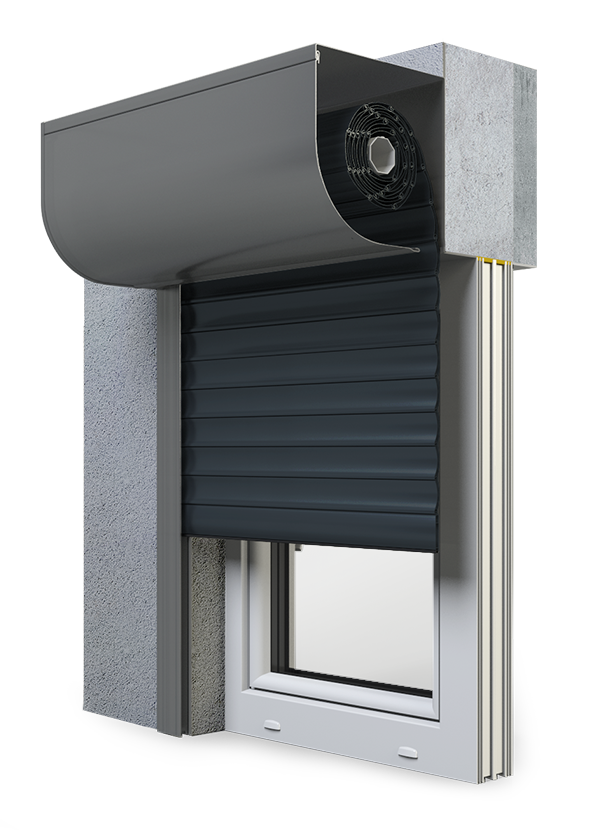

  • Grey anthracite

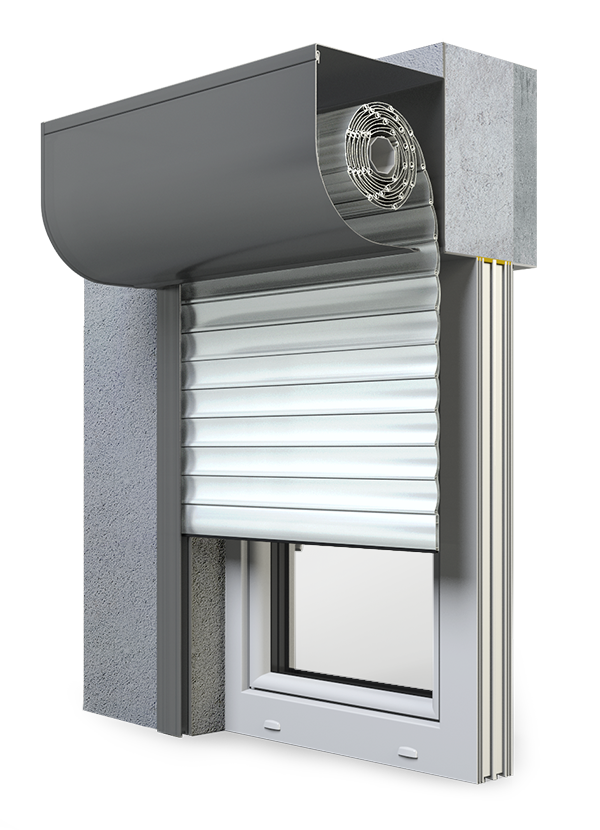

  • Ultra white
  • Black

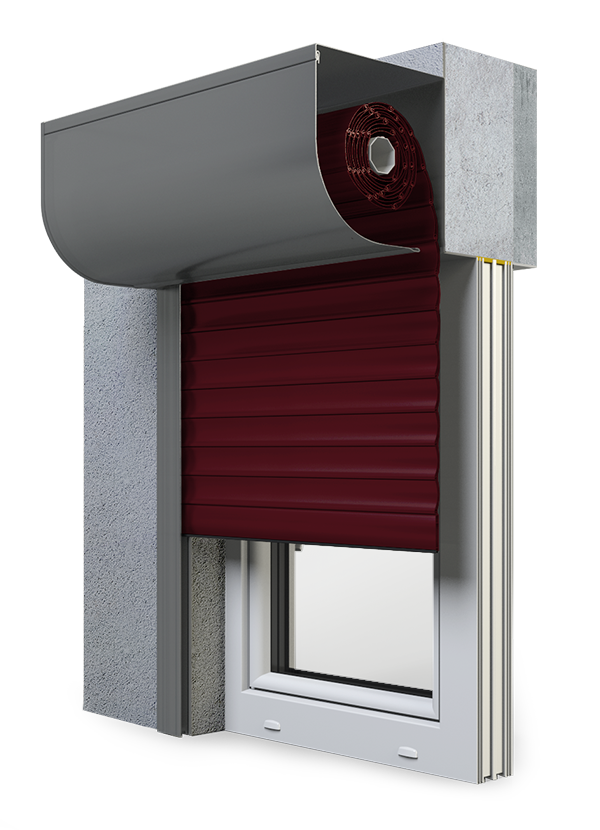

  • Crimson
  • Creamy white
  • Fir green
  • Steel blue
  • red
  • yellow
  • brown
  • dark wood
  • lightwood
  • Dark brown

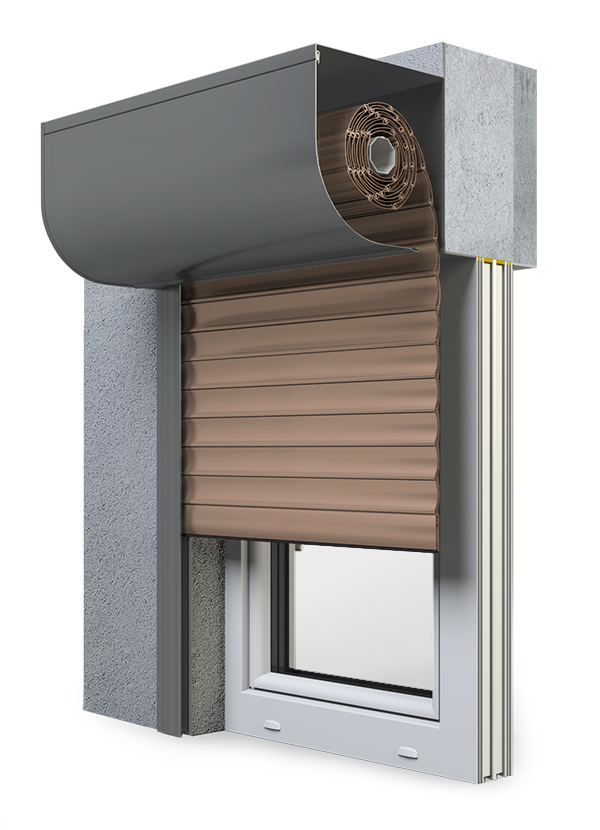

  • Dark beige
  • Beige
  • Grey
  • silver

Controls

Controls

Guarantee 24 love 36 m – cy
For details, please call our helpline:
501 075 606

Application: for every type of building, particularly existing ones

Technical specifications

Model case / SKP: aluminium, semi-oval
Box size: 137, 150, 165, 180, 205 (w x h)
Standard box colour: Silver, white, light and dark brown
Guide rail Aluminium angle profile with rubber seal or brush
End cap aluminium with rubber seal
Armour Aluminium with polyurethane foam
extruded aluminium
PCV
Optional extra Oval overlays for guides
Mosquito net integrated with a roller blind
External roller blind service: Access panel from the front
Max roller shutter profile power / Weight:
Profile Max power. Weight
PA39 6 m² 2.8 kg/m²
PA45 6.5m² 2.8 kg/m²
PA52 8 square metres 3 kg/m²
PA55 9.5 m² 3.4 kg/m²

Maximum height on a 40mm pipe for PA-39

box / window height

137/1423

150/1810

165/2225

180/2770

205/4115

type assembly

I'm not sure what you mean by "Na mur". Could you please clarify or rephrase your request?.
2. For the window recess in the version:
a: like a wall,
Reverse assembly
3. Unusual applications:
gastronomic trailer conversions,
e: outbuilding for utility rooms,
built-in fitted furniture, etc.

notes

  • No possibility of building in the box and guides.
    (when mounting from the outside)
  •  The system does not meet the requirements for passive houses
  • A system that is approximately 25% more expensive than the SK model
  • Only 5 standard casing colours (silver, white, grey, light brown, dark brown)

Advantages

1. Possible installation in any arrangement, unconventional solutions
2. Recessed installation – according to customer opinion, the best solution
3. Wide colour range – guides and boxes in any RAL or CNS colour palette* – at an additional cost
Perfectly fits soft-line type windows and sills
5. Original visual effect with oval overlays on sliders
